- Detailed introduction
-

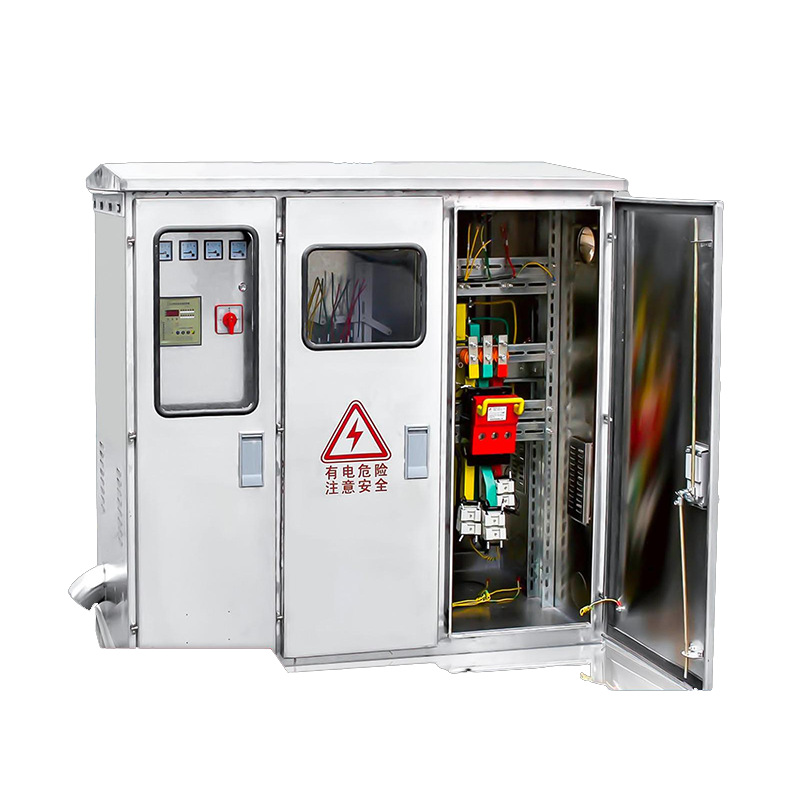

- Commodity name: JP Outdoor Comprehensive Distribution Box (Compensation/Control/Terminal/Lighting)
The JP series outdoor comprehensive distribution box integrates multiple functions such as metering, outgoing lines, and reactive power compensation, achieving an outdoor comprehensive distribution device. It features short circuit, overload, overvoltage, and leakage protection functions, with a compact size, attractive appearance, and economical practicality. It is installed on the poles of transformers in outdoor settings, making it an ideal distribution product for the new generation of urban and rural power grid transformation.
The JP series outdoor integrated distribution box combines multiple functions such as metering, outgoing lines, and reactive power compensation, achieving an outdoor integrated distribution device. It features short circuit, overload, overvoltage, and leakage protection, is compact, aesthetically pleasing, economical, and practical, and is installed on the poles of transformers in outdoor settings, making it an ideal distribution product for urban and rural power grid renovation.
Usage Environment
• Ambient Temperature: -25℃ to +40℃;
• Relative Humidity: Daily average not exceeding 90%, monthly average not exceeding 90%;
• Altitude: Not exceeding 2000m;
• Installed in places without severe vibration and impact, and corrosive gases.Structural Features

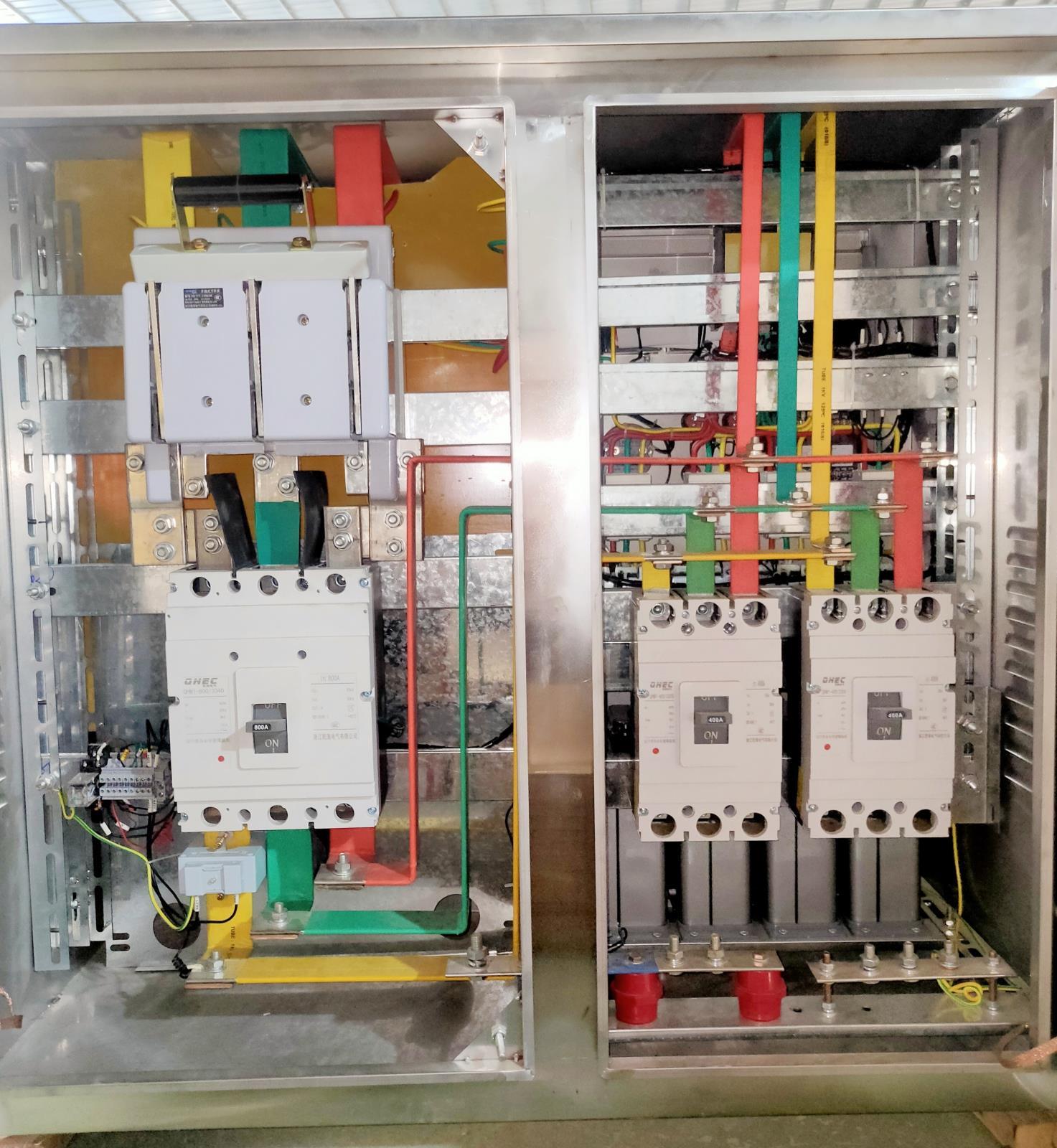

The box structure is available in vertical and horizontal types, with the shell made of 2mm high-quality non-magnetic steel plate processed through multiple bending techniques (or using honeycomb structure stainless steel double-layer composite board, which has flame retardant, environmentally friendly, thermal insulation, and anti-condensation properties). It employs a special stainless steel welding process, resulting in high overall strength after the box is formed, with a mirror-like smooth surface and no welding marks. The internal installation beams (plates) are treated with hot-dip galvanizing to ensure no corrosion for twenty years. The box has doors on the front and back for easy user operation and maintenance, with high-elasticity, aging-resistant sealing strips around the doors. Each door is equipped with both visible and hidden locks, with the visible lock having a rain cover to prevent blockage and rust. The metering room is fully enclosed with a lead seal device. The side of the box is equipped with rainproof and foreign object-proof cable entry pipes, the bottom has ventilation holes and cable exit holes, and the top has ventilation ducts and mesh, providing waterproof, rustproof, dustproof, and foreign object-proof functions, with a protection level of IP54.
Main Technical Parameters
Project Unit Parameter Transformer Capacity V 30~400 Rated Working Voltage ms AC400 Auxiliary Circuit Working Voltage In AC220, AC380 Rated Frequency Hz 50 Rated Current A ≤630 Human Leakage Action Current W 30~300 adjustable Protection Level IP54
