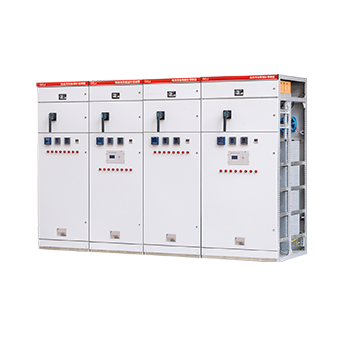

GGJ Low Voltage Reactive Power Intelligent Compensation Device
Low Voltage Switchgear Series
Service Hotline
- Detailed introduction
-
- Commodity name: GGJ Low Voltage Reactive Power Intelligent Compensation Device
This device can effectively improve the power factor of electrical loads, reduce line losses, and enhance the actual load capacity of transformers, resulting in significant energy-saving effects. Additionally, by using specific reactors in the system, it can effectively prevent harmonic amplification and absorb most of the harmonic currents, ensuring that the total harmonic distortion voltage limits and the content limits of each harmonic current comply with national standards, thus achieving the goal of harmonic management.
This device can effectively improve the power factor of electrical loads, reduce line losses, and enhance the actual load capacity of transformers, resulting in significant energy-saving effects. Additionally, by using specific reactors in the system, it can effectively prevent harmonic amplification and absorb most harmonic currents, ensuring that the total harmonic distortion limits and the content limits of each harmonic current comply with national standards, achieving the goal of harmonic treatment. If ordinary contactors are used to switch capacitor groups, it will lead to large inrush currents, slow compensation times, high maintenance costs, and short service life. Therefore, we recommend that users consider using dynamic reactive power compensation devices in the following situations: in substations of industrial and mining enterprises, production workshops, and low-voltage power grids of civil buildings, especially suitable for power distribution systems where loads frequently change and reactive power is unstable. This product complies with: G8/T15576-2008 "Low Voltage Complete Reactive Power Compensation Equipment", IEC60439 "Low Voltage Complete Switchgear and Control Equipment", and other standards.
Environmental Conditions
• Ambient Temperature: -5℃ to +40℃;
• Relative Humidity: Not exceeding 90% (at 20℃);
• Altitude: Not exceeding 2000m;
• Surrounding medium should not have explosion hazards, nor should there be gases that can damage or corrode metals, no conductive dust, the installation site should not experience severe vibrations, and should be free from rain and snow erosion.Product Features
• Strong general performance: This compensation cabinet can be combined with various domestic and foreign cabinet types, such as MNS, GCK, GGD, etc.;
• Diverse and flexible capacitor compensation combinations: Includes Y-type compensation, A-type compensation, and Y+A combined compensation methods;
• Diverse communication methods: Equipped with RS-232/485 communication interfaces, wireless data transmission modules, or GPRS modules for long-distance communication;
• Accurate and safe control: Implements zero-crossing voltage triggering, with no inrush current during connection and no high voltage generated during disconnection;
• Long service life: Under maintenance-free conditions, the service life can exceed 100,000 hours.Main Technical Parameters
Item Unit Parameter System Voltage V AC450 and below Switching Time ms t≤20 Inrush Current In <25 Rated Frequency Hz 50±50% Sampling Current A 0-5 Power Consumption Current W ≤15 Sensitivity mA 100
