MNS Low Voltage Withdrawable Switchgear
Low Voltage Switchgear Series
Service Hotline
- Detailed introduction
-

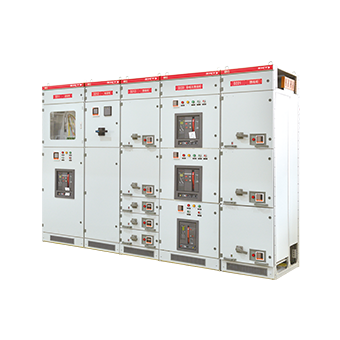

- Commodity name: MNS Low Voltage Withdrawable Switchgear
This series of low-voltage withdrawable switchgear is a type of modular cabinet assembled in the factory (FBA) using standard modules, and its technology has reached an internationally advanced level.
This series of low-voltage withdrawable switchgear is a modular cabinet type assembled in the factory (FBA) using standard modules, and its technology has reached an internationally advanced level. This series of low-voltage withdrawable switchgear is suitable for power plants, substations, petrochemical, metallurgy, transportation energy, light industry and textile enterprises, as well as residential communities and high-rise buildings, serving as power distribution equipment for energy conversion, distribution, and control in power systems with AC 50-60Hz and a rated working voltage of AC 660V and below. This device complies with national professional standards GB72511 "Low Voltage Complete Switchgear" and JB/T9961 "Low Voltage Withdrawable Complete Switchgear", and meets international professional standards such as IEC439-1 and VDE0660 Part 5.
Usage Conditions
• Ambient air temperature not exceeding +40℃, not lower than -5℃, and the average temperature within 24 hours not exceeding +35℃:
• Atmospheric conditions: Clean air, relative humidity not exceeding 50% at the maximum temperature of +40℃, and higher relative humidity is allowed at lower temperatures, for example, 90% at +20℃, but temperature changes should be considered, as condensation may occasionally occur;
• Altitude not exceeding 2000m;
• This device is suitable for transportation and storage processes at temperatures between -25℃ and +55℃; for a short time (not exceeding 24h), it can reach +70℃, and under these extreme temperatures, the device should not suffer any irreversible damage, and it should be able to operate normally under normal conditions;
• If the above usage conditions cannot be met, the user and the manufacturer should negotiate a solution;
• When this device is used on offshore oil drilling platforms and nuclear power plants, a separate technical agreement should be signed.Electrical Performance
Item Parameter Rated Insulation Voltage 660V(1000)V Rated Working Voltage 380V, 660V Maximum Working Current of Main Busbar 5000A Rated Withstand Current of Main Busbar 100kA/1s Rated Peak Withstand Current of Main Busbar 220kA/0.1s Maximum Working Current of Distribution Busbar (Vertical Busbar) 1000A Peak Current of Distribution Busbar (Vertical Busbar) Standard Type 105kA (maximum)/0.1s Reinforced Type 176kA (maximum)/0.1s
