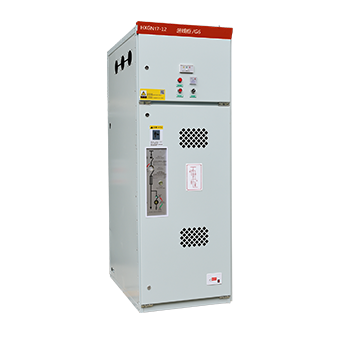

HXGN17-12 AC Metal-Enclosed Ring Network Switchgear (Vacuum Switch)
High Voltage Switchgear Series
Service Hotline
- Detailed introduction
-
- Commodity name: HXGN17-12 AC Metal-Enclosed Ring Network Switchgear (Vacuum Switch)
The HXGN17-12 AC metal-enclosed ring network switchgear (vacuum switch) (referred to as ring network cabinet) is a new type of high-voltage switchgear produced to meet the needs of urban power grid renovation and construction.
HXGN17-12 AC Metal Ring Network Switchgear (Vacuum Switch) (referred to as Ring Network Cabinet) is a new type of high-voltage switchgear produced for the needs of urban power grid transformation and construction. It is also used in the power supply system to break load current and short-circuit current, as well as to close short-circuit current. This ring network cabinet is equipped with FZRN25 and FZRN21 vacuum load switches, and the operating mechanism is a spring mechanism, which can be operated manually or electrically. The grounding switch and isolating knife are equipped with manual operating mechanisms. This ring network cabinet has strong completeness, small size, no burning and explosion hazards, and also has reliable "five prevention" functions. This ring network cabinet complies with the relevant provisions of GB3906 "3-35kV AC Metal Enclosed Switchgear" and IEC60420 "High Voltage AC Load Switch Fuse Combination Electrical Equipment" standards.
Usage Conditions
• Ambient air temperature: -15℃ to +40℃;
• Altitude: 1000m and below;
• Humidity conditions: Daily average not exceeding 95%, daily average water vapor pressure not exceeding 2.2kPa; monthly average not exceeding 90%, monthly average water vapor pressure not exceeding 1.8kPa:
• Earthquake intensity: not exceeding level 8:
• No obvious pollution from corrosive or flammable gases.
Note: If the above usage conditions are exceeded, users can negotiate with our company.Main Technical Parameters
Item Unit FKN12-12 FZN25-12 Rated Voltage 12 1 min Power Frequency Withstand Voltage To ground and phase-to-phase 42; isolating break 48 Lightning Impulse Voltage (Peak Value) To ground and phase-to-phase 75; isolating break 85 Rated Frequency 50 Main Bus Rated Current A 630 Load Switch Rated Current A 630 Electrical Life at Rated Current Times Not less than 100 Breaking No-load Transformer Capacity kVA 1250 Rated Thermal Stability Current kA/S 20/4; Grounding Switch 20/2 Rated Dynamic Stability Current (Peak Value) kA 50 Rated Circuit Breaker Closing Current (Peak Value) kA 50 Fuse Rated Current kV 100 Rated Transfer Current kV 1500 2000 Rated Short-circuit Breaking Current kA 315 Matching Fuse Model S Port LAJ-12(XRNT口-10)
